The Anten Wifi Ruijie RG-ANTx3-2400&5800(O) is an outdoor omni-directional antennathat supports 3X3 MIMO and works with the RG-AP630 series products for 2.4GHzand 5.8GHz band coverage.
Table 1‑1 RG-ANTx3-2400&5800(O) Technical Specifications
|
Product Model
|
RG-ANTx3-2400&5800(O)
|
|
Dimensions (L x W x H)
|
Φ145 mm x 330 mm
|
|
Operating Frequency
|
2.4 GHz-2.5 GHz;
5.125 GHz-6.100 GHz
|
|
AntennaGain
|
8 dBi
|
|
AntennaLobe Bandwidth
|
E:17°; H:360°
|
|
Stationary Wave Ratio
|
≤1.5
|
|
Isolation
|
≤ -25 dB
|
|
Port Resistance
|
50 ohm
|
|
Polarization Mode
|
Vertical polarization
|
|
Connector Type
|
6xN-K
|
|
Weight
|
1.2 kg (2.64 lbs)
|
|
Operating Temperature
|
-40°C to 60°C (-40°F to 140°F)
|
|
Installation Method
|
Pole mounting (pole with a diameter of 40 mm to 70 mm)
|
Product and Accessory Appearance

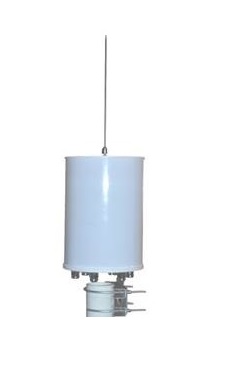

Figure 1‑1 RG-ANTx3-2400&5800(O) Appearance
Figure 1‑2 Standard Feeder for the RG-ANTx3-2400&5800(O)
Figure 1‑3 Standard Waterproofing Material for the RG-ANTx3-2400&5800(O)
Tìm hiểu thêm: Wifi Ruijie Mới Nhất. Tại Đây
2.4GHz & 5GHz MIMO Outdoor Omni-Directional Antenna Kit, include: 8dBi panel antenna (1 set); 1-meter N-N coaxial cables (6 sets); waterproof materials (2 set)
