The Anten Wifi Ruijie RG-ANTx3-2400D is an outdoor directional antenna that supports3X3 MIMO and works with the RG-AP630 series products for coverage and bridgeapplications of the 2.4GHz band.
Table 1‑1 RG-ANTx3-2400D Technical Specifications
|
ProductModel
|
RG-ANTx3-2400D
|
|
Dimensions(L x W x H)
|
400 mm x 240 mm x35 mm
|
|
Operating Frequency
|
2.4 GHz-2.483 GHz
|
|
Antenna Gain
|
3 x15dBi
|
|
AntennaLobe Bandwidth
|
2.4G: E:16°; H:65°
|
|
Isolation
|
≤ -25dB
|
|
Port Resistance
|
50 ohm
|
|
PolarizationMode
|
2 x VP + 1 x HP
|
|
Connector Type
|
3×N-K
|
|
Weight
|
2.3 kg (5.07 lbs)
|
|
Operating Temperature
|
-40°C to 60°C (-40°F to 140°F)
|
|
InstallationMethod
|
Pole mounting(pole with a diameter of 30 mm to 50 mm)
|
Product and Accessory Appearance

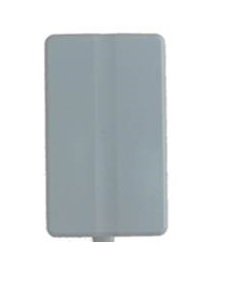

Figure 1‑1 RG-ANTx3-2400D Appearance
Figure 1‑2 Standard Feeder for the RG-ANTx3-2400D
Figure 1‑3 Standard Waterproofing Material for theRG-ANTx3-2400D
Tìm hiểu thêm các sản wifi ruijie tại đây!
2.4GHz MIMO Outdoor Directional Antenna Kit, include: 15dBi panel antenna (1 set); 1-meter N-N coaxial cables (3 sets);waterproof materials (1 set)
