The Anten Wifi Ruijie RG-ANTx3-5800D is an outdoor directional antenna that supports3X3 MIMO and works with the RG-AP630 series products for coverage and bridgeapplications of the 5.8GHz band.
Table 1‑1 Anten Modem Wifi Ruijie RG-ANTx3-5800D Technical Specifications
|
ProductModel
|
RG-ANTx3-5800D
|
|
Dimensions(L x W x H)
|
380 mm x 380 mm x 33 mm
|
|
Operating Frequency
|
5.125GHz-6.100GHz
|
|
AntennaGain
|
2 x 19(vertical) + 16 (double bevel)
|
|
AntennaLobe Bandwidth
|
E: 16°; H: 21°
|
|
Stationary Wave Ratio
|
≤1.5
|
|
Isolation
|
≤ -25dB
|
|
Port Resistance
|
50 ohm
|
|
PolarizationMode
|
± 45°and vertical polarization
|
|
Connector Type
|
3×N-K
|
|
Weight
|
1.3 kg (2.87 lbs)
|
|
Operating Temperature
|
-40°C to 60°C (-40°F to 140°F)
|
|
InstallationMethod
|
Pole mounting(pole with a diameter of 50 mm to 120 mm)
|
Product and Accessory Appearance

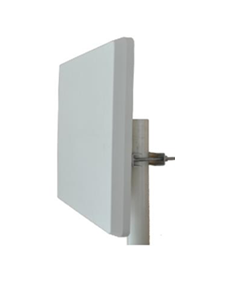

Figure 1‑1 RG-ANTx3-5800D Appearance
Figure 1‑2 Standard Feeder for the RG-ANTx3-5800D
Figure 1‑3 Standard Waterproofing Material for theRG-ANTx3-5800D
Tìm hiểu thêm các dòng Wifi Ruijie .
5GHz MIMO Outdoor Directional Antenna Kit, include: 19dBi panel antenna (1 set); 1-meter N-N coaxial cables (3 sets); waterproof materials (1 set)
