Thiết bị mạng Ruijie > Wifi Ruijie (ngoài trời - outdoor)

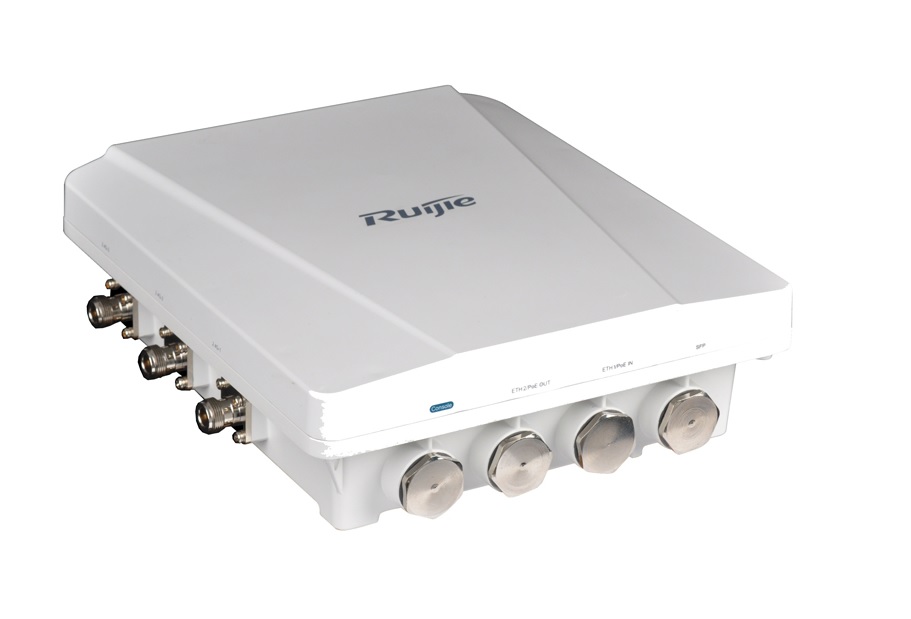

Bộ phát Wifi ngoài trời Ruijie RG-AP630(CD)
Mã SP:RG-AP630(CD)
Bảo hành:36 tháng
Vận chuyển:Miễn phí vận chuyển nội thành

Outdoor  Wifi Ruijie Outdoor RG-AP630(CD): Outdoor Wireless Access Point, IP67 rating, built-in directional antenna and lightning arrester, 2×2 MIMO

Price: LIÊN HỆ
Hotline 0981998688 - 02466.599.955
Hotline info@hgsi.com.vn

  • Thông tin sản phẩm
  • Thông số kỹ thuật

Outdoor Wifi Ruijie RG-AP630(CD)​ is 802.11ac wireless access points for outdoor wireless network applications.

The Outdoor Wifi Ruijie RG-AP630(CD)​ supports 1.167Gbps access rate, and take full care of security, RF control, mobile access, QoS, seamless roaming and other Wi-Fi aspects. Teaming up with Ruijie RG-WS Wireless Controller Series, the AP offer Wi-Fi user data forwarding, advanced security and access control with ease.

The industrial-class AP enclosure (IP67 rated) can withstand extreme outdoor conditions and hence simplify device installation and maintenance. Outdoor Wifi Ruijie RG-AP630(CD)​ equipped with built-in.



High Performance & Reliability

●802.11ac Superior Wireless Performance

The RG-630(CD) supports 802.11n@2.4GHz and 802.11ac@5GHz, offering access rates up to 1.167Gbps. The outstanding wireless performance greatly optimizes wireless user experience, increases the number of concurrent users and enhances signal coverage.

●Industry’s Most Flexible Gigabit Uplink

The Outdoor Wifi Ruijie RG-AP630(CD)​ Series offers a 10/100/1000Base-T Ethernet uplink port that rids the LAN port of being the wireless access bottleneck, and a 1000M SFP combo port that adapts to wired networking structure under different user scenarios. The SFP Base-X port takes up the data transmission workload for optimal network deployment.

●Easy-to-use Mount-Kit

An adjustable mount-kit is available by default for painless deployment optimization. The APs can be easily adjusted -60° to 60° horizontally and -60° to 90° vertically to adapt to various scenarios.

https://www.ruijienetworks.com/FU/UIA/Product/Images/2018/6-27/20186279405440.jpg

https://www.ruijienetworks.com/FU/UIA/Product/Images/2018/6-27/20186279937250.jpg

Adjustable Mount-kit of AP630

●All-in-one Package for Painless Deployment

The RG-AP630(CD) Outdoor AP offers you a one-stop installation package. Everything you need is included, from external antennas to lightning arresters and coaxial cables, for effortless outdoor deployment.

https://www.ruijienetworks.com/FU/UIA/Product/Images/2018/6-27/201862710827513.jpg

All-in-one Installation Package

●Flexible WDS Mode

The APs implement WDS (Wireless Distribution System) to support interconnection of multiple APs or wireless bridging under 5 hops. Wireless bridging can be achieved even for a long distance. The outdoor APs also support point-to-multipoint bridging (CPE application scenarios) for more flexible networking. The features get over the outdoor deployment problems to support large-scale and remote high-speed wireless coverage.

●Intelligent Device Recognition

The APs support intelligent recognition of end devices running mainstream operating systems such as iOS and Android.

●Industry-leading Local Forwarding Technology

Employing an industry-leading local forwarding technology, the APs eliminate the traffic bottleneck of wifi ruijie controllers. Deploying with the Ruijie RG-WS Wireless Controller Series, users can flexibly pre-configure the data-forwarding mode of the outdoor APs. The APs also control if the data will be forwarded via the wireless controller. The local forwarding technology can forward large-scale, delay-sensitive, and real-time transmission data to greatly alleviate the traffic pressure on the wireless LAN controllers and fulfill the high traffic transmission requirements of the 802.11ac network.

●Seamless Roaming Experience

The APs team up with the RG-WS Wireless Controllers in perfect harmony, allowing wireless users to roam seamlessly on Layer 2 and Layer 3 networks without data interruption.

●Abundant QoS Policies

The AP supports a wide range of QoS policies. For example, it provides WLAN/AP/STA-based bandwidth limitation modes that prioritize key services over others.

●Outstanding Environmental Adaptability

The outdoor APs offer an IP67-rated enclosure that fulfills waterproof, dustproof, moisture-proof and flame retardant requirements to withstand harsh environments such as wind erosion, rain and high humidity. The features greatly lengthen the equipment life span and effectively reduce the maintenance cost.

●Wide Operating Temperature Range

All the AP components and enclosures can withstand a wide temperature range from -40°C to 65°C without any influence on the stability and life span. The design ensures the metal components cool down efficiently at high temperatures. The built-in heater module guarantees stable operation under freezing conditions.

Comprehensive Security Policies

●User Data Encryption

The outdoor APs offer protected Wi-Fi access with the support of cutting-edge encryption technologies such as WEP, TKIP and AES, guaranteeing the data transmission security of the wireless network.

●Virtual AP Technology

With the virtual AP technology, the AP can offer up to 16 ESSIDs (per radio) and 16 802.1Q VLANs. The network administrator can separately encrypt and isolate subnets or VLANs that have the same SSID. A separate authentication mode and encryption mechanism for each SSID can also be configured flexibly.

●Standard CAPWAP Encryption

CAPWAP (Control and Provisioning of Wireless Access Points) enables communication between RG-WS Wireless Controllers and the outdoor APs. The standard ensures secure data transmission.

●RF Security

In collaboration with Ruijie’s RG-SNC Smart Network Commander and RG-WS Wireless Controllers, the APs enable the RF probe scanning mechanism to detect unauthorized access points or other RF interference sources. Once detected, the APs will alert network administrator to monitor potential threats and usage status in the wireless environment.

●User Access Control

The APs support a wide range of authentication methods such as Web, 802.1x, MAC address and local authentication. The APs also support Ruijie’s advanced Security Management Platform (SMP) BYOD Solution which complies with a standard access control system. The system has a set of control policies in terms of user access, authorization, host compliance check, network behavior monitoring, network attack defense, etc. All these control features ensure that users are authenticated before accessing the network services securely.

●Wireless Protection

Together with Ruijie’s RG-SNC Smart Network Commander and RG-WS Wireless Controllers, the APs provide a powerful range of wireless security features such as Wireless Intrusion Detection System (WIDS), RF Interference Location, Rogue AP Countermeasures, Anti-ARP Spoofing and DHCP protection for a truly secure and reliable wireless network.

●Wireless IPv6 Access

Comprehensive IPv6 features are available to enable IPv6 forwarding on a wireless network. Both IPv4 and IPv6 users can connect to the ACs over tunnels, enabling IPv6 applications to be borne on the wireless network.

●Flexible Authentication Modes

The APs support convenient Protected Extensible Authentication Protocol (PEAP), SMS Authentication, and QR Code Authentication.

The PEAP Authentication allows users to perform password authentication for once only. That means users are only required to enter credentials during their first network visit.

If the SMS authentication is adopted, users first sign in with their mobile phone numbers and then receive an SMS with login username and password for network access.

Flexible Device Management Mode

●Flexible Switching Between The FAT And FIT Modes

The APs support flexible switching over the FAT and FIT modes according to the networking requirements of different industries. When there are few APs, users can adopt the FAT mode for easy independent network establishment. For large-scale networks, the APs can operate in FIT mode which allows centralized management of all the APs and other aspects such as security, traffic management, QoS and IP management when deployed with the RG-WS Wireless Controllers. Smooth transition from one to another, the APs fully protect user investment.

●Simple Deployment With Zero Configuration

Under the FIT mode, no AP configuration is required before deployment. Also, no manual configuration is necessary for on-site installation, maintenance or replacement. Auto-configuration can be completed via the AC. This user-friendly feature can greatly reduce workload and investment costs.

●Comprehensive Remote Management

The RG-WS Wireless Controllers or Cloud AC can remotely and centrally manage all AP operations such as channel, power ranking, SSID configuration, security configuration, VLAN division and so on. The feature enhances security and simplifies the wireless network management.

●PoE Port For Easy Deployment & Maintenance

The RG-AP630(CD) supports the 802.3af PoE standard. By connecting to a HPoE switch through the AP Ethernet port, the outdoor APs can gain power and support data transmission via cables. The network administrator can remotely perform configuration. It also solves the problem of unstable power source, simplifies the installation process and maximizes the cost savings.

Model

RG-AP630(CD)

Target Deployments

For big campus, wireless city, harbor, storage room, mine

Basic Specifications

Radio

Concurrent dual-radio dual-band

Protocol

802.11a/b/g/n/ac

Operating Bands

802.11b/g/n: 2.4GHz to 2.483GHz

802.11a/n/ac: 5.150GHz to 5.350GHz, 5.47GHz to 5.725GHz, 5.725GHz to 5.850GHz

(vary depending on countries)

Antenna

Built-in directional antenna

Antenna Gain

10dBi

Max Throughput

300Mbps@2.4G

867Mbps@5G

1.167Gbps per AP

Spatial Streams

2

Modulation

OFDM: BPSK@6/9Mbps

QPSK@12/18Mbps

16-QAM@24Mbps

64-QAM@48/54Mbps

DSSS: DBPSK@1Mbps

DQPSK@2Mbps

CCK@5.5/11Mbps

MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM and 256QAM

Receiver Sensitivity

11b: -99dBm(1Mbps), -93dBm(5.5Mbps), -90dBm(11Mbps)

11a/g:-93dBm(6Mbps), -85dBm(24Mbps), -82dBm(36Mbps), - 77dBm(54Mbps)

11n:-92dBm@MCS0, -73dBm@MCS7, -92dBm@MCS8, -73dBm@MCS15

11ac HT20: -90dBm (MCS0) , -63dBm (MCS9)

11ac HT40: -85dBm(MCS0) , -60dBm (MCS9)

11ac HT80: -82dBm(MCS0) , -58dBm (MCS9)

Maximum Transmit Power

27dBm

Note: The transmit power is configurable to up to 15dBm in 1dBm steps. The actual transmit power depends on local laws and regulations.

Adjustable Power

1dBm

IP Rating

IP67

Ports

Service Port

1 10/100/1000Mbps ETH1/PoE IN port (RJ-45 connector);

1 SFP port (combo with ETH1)

Management Port



Power

Power Supply

PoE (802.3af)

Compatible with POE+

Power Consumption

<12.95W

WLAN

Maximum clients per AP

Up to 512

SSID capacity

Up to 16 per radio

Up to 32 per AP

SSID hiding

Support

Configuring the authentication mode. Encryption mechanism and VLAN attributes for each SSID

Support

Remote Intelligent Perception Technology (RIPT)

Support

X-speed

Support

Intelligent  load balancing based on the number of users or traffic

Support

STA control

SSID/radio-based

Bandwidth control

STA/SSID/AP-based speed control

Preference for 5GHz (band select)

Support

Wireless position tracking

Support

Dynamic Frequency Selection(DFS)

Future Release Support

Security

PSK, Web, and 802.1x authentication

Support

Data encryption

WPA (TKIP) , WPA2 (AES), WPA-PSK, and WEP (64 or 128 bits)

QR code authentication

Support

SMS authentication

Support

PEAP authentication

Support

Data frame filtering

Whitelist, static/dynamic blacklist

User isolation

Support

Rogue AP detection and countermeasure

Support

Dynamic ACL assignment

Support

WAPI

Support

RADIUS

Support

CPU Protection Policy (CPP)

Support

Network Foundation Protection Policy (NFPP)

Support

Wireless Intrusion Detection System(WIDS)

Support

Wireless Intrusion Prevention System (WIPS)

Support

Routing

IPv4 address

Static IP address or DHCP reservation

IPv6 CAPWAP tunnel

Support

ICMPv6

Support

IPv6 address

Manual or automatic configuration

Multicast

Multicast to unicast conversion

Management and Maintenance

Network management

SNMP v1/v2C/v3, Telnet, SSH, TFTP, and FTP and web management

Visualized wireless heat map analysis

Support

(need to integrate with SNC)

Real-time spectrum analysis

Support

(need to integrate with SNC)

Fault detection and alarm

Support

Cloud AC management

Support

Statistics and logs

Support

FAT/FIT switching

The AP working in FIT mode can switch to the FAT mode through the RG-WS wireless AC.

The AP working in FAT mode can switch to the FIT mode through a local console port or Telnet.

External Characteristics

Lock

Support

LED Indicators

Power status and WDS signal strength

Relevant Standard

Wi-Fi Alliance Certification

Support

Safety Standard

GB4943, UL/CSA 60950-1, EN/IEC 60950-1, EN/IEC 60950-22

EMC Standard

GB9254-2008, EN301 489, EN55022, FCC Part15

Health Standard

FCC Bulletin OET-65C ,EN 50385, IC Safety Code 6

Radio Standard

FCC Part15,EN300328, EN301893

Vibration Standard

GB/T 2423



Dimensions (W x D x H) (mm)

276 × 246 × 90

Specifications

Weight

<2.5kg

Work Environment

Temperature

Operating Temperature: -40°C to 55°C

Storage Temperature: -40°C to 70°C

Humidity

Operating Humidity: 5% to 95% (non-condensing)

Storage Humidity: 5% to 95% (non-condensing)

Installation Mode

Wall/pole-mount installation
